60cm Next Foldable Circular Saw Guide

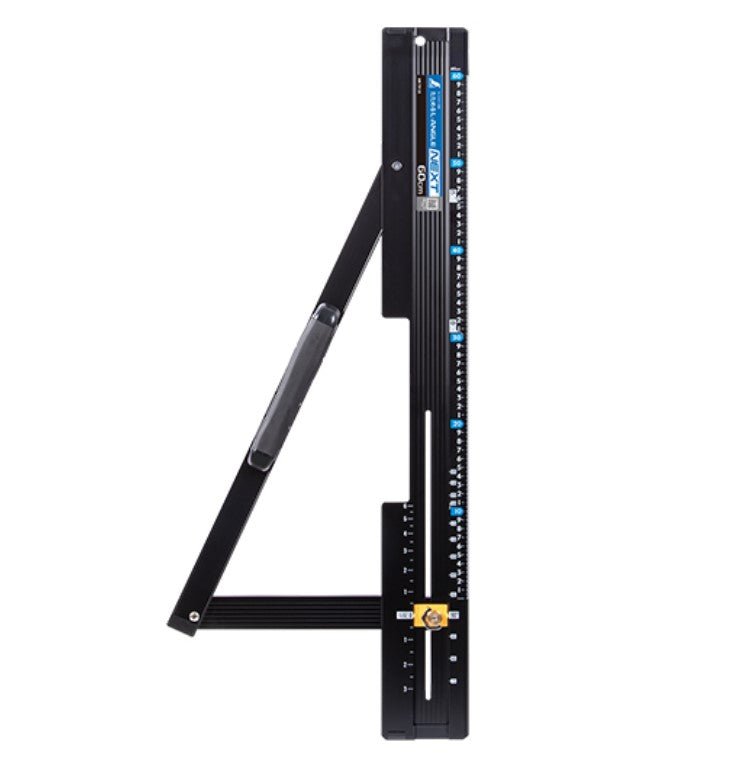

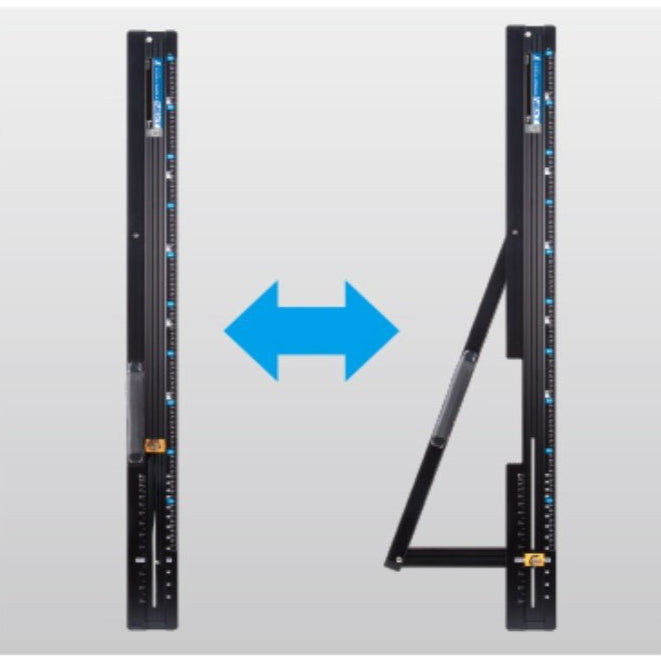

The Shinwa 60cm Next Foldable Circular Saw Guide is a versatile L-angle cutting tool engineered for portability and precision. Its foldable butt allows for compact storage, while the guide can be fixed at a 90° angle or adjusted between 75° and 135° using the integrated angle scale and reverse slope dimension scale.

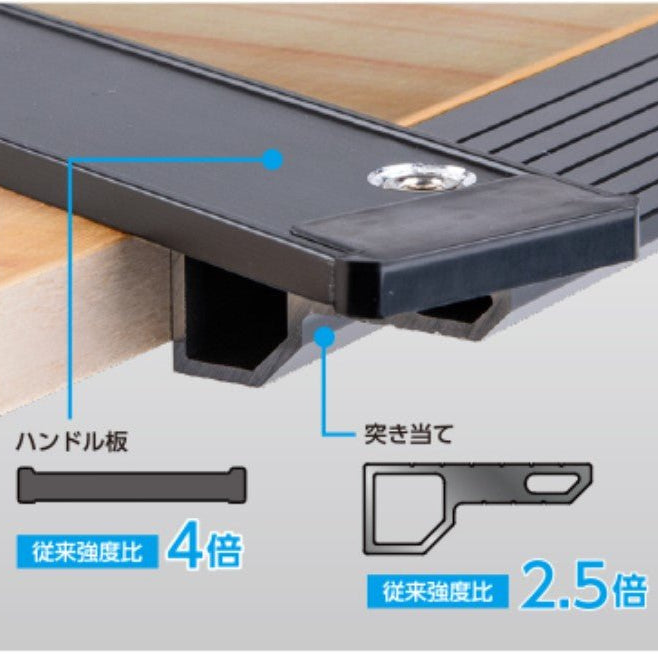

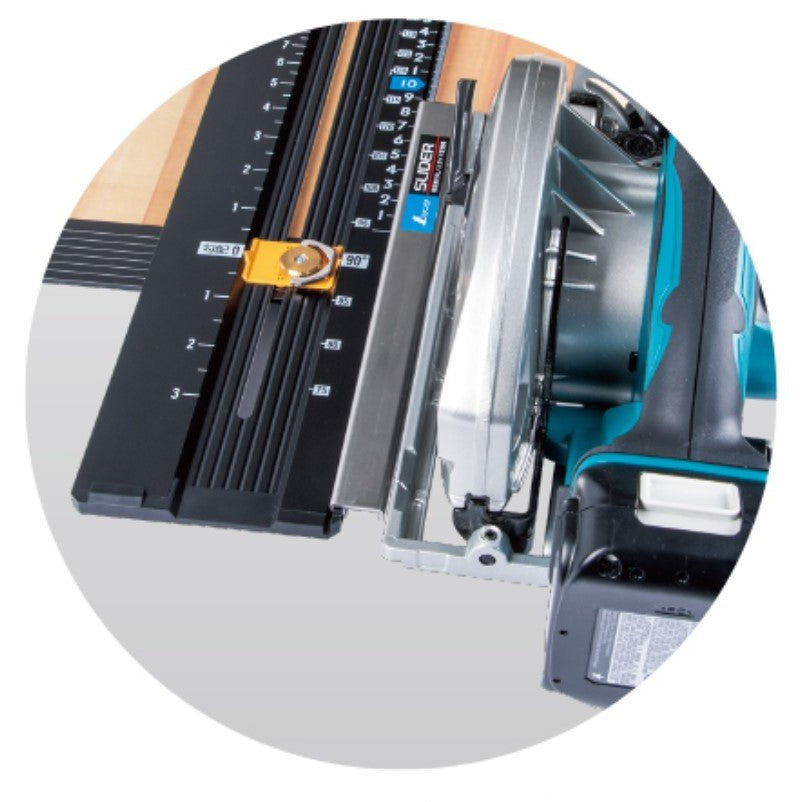

Lightweight and easy to handle, this guide is ideal for angled or straight cuts in construction and woodworking settings. The surface is equipped with a thin stainless steel plate and a protective cap to safeguard your material during use, making it a reliable choice for both professional and DIY projects.

Specifications:

• Scale: 60 cm
• Squareness Accuracy: ±0.1 mm per 100 mm (at 90° only)
• Pole Size: 817 x 100 x 7 mm
• Angle Adjustment Range: 75° to 135°
• Hitting Height: 15 mm
• Body Size: 817 x 346 x 73 mm (100 mm width when folded)
• Materials
  • Body: Aluminium
  • Guide Surface: Stainless Steel
  • Protective Cap, Indicator Plate, Brass Handle: ABS Resin
  • Knob Screw: Stainless Steel
  • Handle Grip: Elastomer Resin
• Made in Japan
